Multi Armed Bandits

or how to balance exploration and exploitation more formally
AI
Published

November 12, 2017

Problem

Imagine you are at a casino, and you have N slot machines to play, each slot machine gives rewards according to a fixed probability distribution. What strategy should you play with to maximise your total reward ?

This problem is known as Multi Armed Bandit problem.

# Importing numpy for math, and matplotlib for plots
import matplotlib.pyplot as plt
import numpy as np
%matplotlib inline

Arms

An arm when pulled, gives a random number from a normal distribution with fixed mean(mu) and deviation(sigma). When pulled many times the frequency of the rewards look like this:

normal distribution X axis is the magnitude of reward
Y axis is it’s frequency.

The Arm class provides an arm with these properties.

class Arm:

    def __init__(self, mu=None, sigma=None):
        if mu is None:
            self.mu = np.absolute(np.random.uniform())
        else:
            self.mu = mu


        if sigma is None:
            self.sigma=np.absolute(np.random.uniform())
        else:
            self.sigma = sigma


    def pull(self):
        reward = np.random.normal(self.mu, self.sigma, 1)
        return reward


def get_arms(k):
    # returns a list of arms
    arms = []
    for i in range(k):
        arms.append(Arm())
    return arms

Agents

An agent here is a player who pulls arms to play. It has a policy, which is a list of probabilities associated with each arm.

The agent class makes designing agents fast. The object is initialised with arms and whether it should play all arms once as part of the initialisation.

Features provided by this class:
Attributes: * expectations[i]: gives the expected reward on playing arm[i] * times_played[i]: gives the number of times the agent has played arm[i] * N = Total number of times agent has played * reward_history : list of rewards earned by the agent * choice_history : list of choices made by the agent

Methods: * gamble(i): Plays for i iterations while updating it’s policy. * play(i): Pulls arm[i] and updates reward_history, N , times_played * select_arm(): returns index of an arm by sampling probability distribution given by the policy

class agent:
    def __init__(self, arms, play_once=1):
        self.expectations = np.zeros(len(arms))
        self.times_played = np.zeros(len(arms))
        self.arms = arms

        self.number_of_arms = len(arms)
        self.N = 0

        self.reward_history = []
        self.choice_history = []

        if play_once == 1:
            for i in range(self.number_of_arms):
                self.expectations[i] = self.play(i)

    def play(self, index):
        reward = self.arms[index].pull()

        self.times_played[index] += 1
        self.N += 1

        self.choice_history.append(index)
        self.reward_history.append(reward)

        return reward

    def policy(self):
        pass

    def update_expectations(self, reward, index):
        self.expectations[index] += (reward - self.expectations[index])/self.N

    def select_arm(self):
        options = range(self.number_of_arms)
        i = np.random.choice(options, p=self.policy(), replace=False)
        return i

    def gamble(self, iterations):
        for i in range(iterations):
            index = self.select_arm()
            reward = self.play(index)
            self.update_expectations(reward, index)

Example agents

To make a new agent we inherit the agent class.

Time to make some agents!

First up: epsilon-greedy

This agent plays the arm with the highest expected reward with 1 - epsilon probability, and plays a random arm with epsilon probability

So
epsilon = 1 => random choices
epsilon = 0 => greedy choices

class epsilon_greedy(agent):

    def __init__(self, arms, play_once=1, epsilon=0.1):
        super().__init__(arms, play_once)
        self.epsilon = epsilon

    def __str__(self):
        return "Epsilon-Greedy Agent, epsilon= "+str(self.epsilon)

    def policy(self):
        temp = np.zeros_like(self.expectations)
        temp[np.argmax(self.expectations)] = 1-self.epsilon
        ans = temp + self.epsilon/self.number_of_arms
        return ans

Beta-Softmax

This agent plays an arm[i] with probability proportional to: e^(expected_reward(arm[i])/beta)
We normalise the whole thing by the sum over all the arms.

class softmax(agent):

    def __init__(self, arms, play_once=1, beta=1):
        super().__init__(arms, play_once)
        self.beta = beta

    def __str__(self):
        return "Softmax agent, beta= "+ str(self.beta)

    def policy(self):
        temp = np.exp(self.expectations/self.beta)
        ans = temp / np.sum(temp, axis=0)
        return ans

Upper Confidence Bound (UCB1)

UCB1 agent plays the arm with the highest metric, where metric of arm i is : metric[i] = expected_reward[i] + sqrt(2*log(N)/times_played[i])

Note Best peformance when rewards are between 0 and 1

class ucb(agent):

    def __init__(self, arms, play_once=1):
        super().__init__(arms, play_once)

    def __str__(self):
        return "UCB1 agent"

    def policy(self):
        temp = self.expectations + np.sqrt(2*np.log(self.N)/self.times_played)
        ans = np.zeros_like(temp)
        ans[np.argmax(temp)] = 1
        return ans

Metrics

Metric : A scalar number, makes comparison easier.
To compare the performance of our agents we can use these metrics

  • avg_reward[i] : this gives the average reward till i+1 iteration.

  • max_reward : this tells us the maximum expected reward

  • euclid_distance : we can think of as learnt policy and optimal policy as vectors and compute the distance between them , smaller is better

  • cosine_simmilarity : compute the cos(q) between the policies. larger is better

def maxreward(arms):
    #Max rewards
    a= [arm.mu for arm in arms]
    return max(a)

def avg_reward(rewards):
    ans = []
    ans.append(rewards[0])
    for i in range(1,len(rewards)):
        ans.append(ans[i-1]+rewards[i])
    for i in range(len(ans)):
        ans[i]/=i+1
    return ans

def cosine_similarity(a,b):
    temp = a*b
    temp/=(euclid_distance(a)* euclid_distance(b))
    return np.sum(temp, axis=0)

def euclid_distance(a):
    return np.sqrt(np.sum(a*a, axis=0))

Test

This function takes a list of agents and the number of iterations. Makes each agent play, and prints its metrics.

def test(agents, iterations):
    for agent in agents:

        agent.gamble(iterations)

        temp = [ arm.mu for arm in levers]
        optimal_policy = np.zeros_like(agent.expectations)
        optimal_policy[temp.index(max(temp))] = 1

        avg_rewards_earned = avg_reward(agent.reward_history)

        print(agent)
        print("maximum possible reward:", maxreward(levers))
        print("average reward:", avg_rewards_earned[-1])
        print("cosine similarity" ,cosine_similarity(agent.policy(), optimal_policy))
        euclid_norm = euclid_distance(agent.policy()-optimal_policy)/len(optimal_policy)
        print("euclidian norm ",euclid_norm)


        plt.plot(avg_rewards_earned)
        plt.ylabel('Average Reward')
        plt.xlabel('Iteration')
        plt.show()
        print("\n")

        # print("optimal policy:" , optimal)
        # print("learnt policy:" ,agent.policy())



        # plt.scatter(range(len(agent.choice_history)),y=agent.choice_history)
        # plt.title("Choices")
        # plt.xlabel("time")
        # plt.ylabel("arm")
        # plt.show()
        # print("\n")


levers = get_arms(10)

agents = [
    epsilon_greedy(levers, epsilon=1),
    epsilon_greedy(levers, epsilon=0),
    softmax(levers, beta=0.1),
    ucb(levers)

]

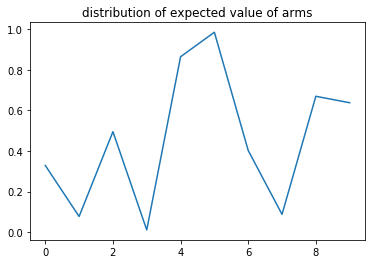

plt.plot([ arm.mu for arm in levers] )
plt.title("distribution of expected value of arms")
Text(0.5, 1.0, 'distribution of expected value of arms')

test(agents, 5000)

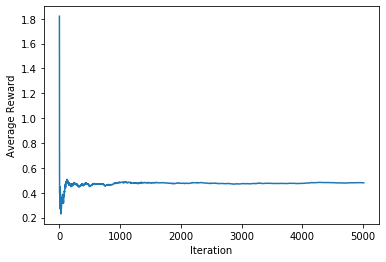

Epsilon-Greedy Agent, epsilon= 1
maximum possible reward: 0.9851042878107023
average reward: [0.47962497]
cosine similarity 0.3162277660168379
euclidian norm  0.09486832980505139

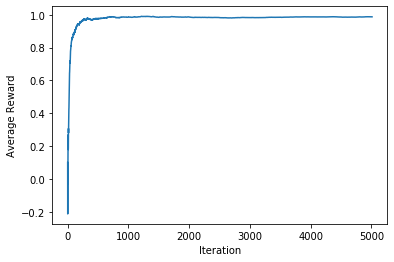

Epsilon-Greedy Agent, epsilon= 0
maximum possible reward: 0.9851042878107023
average reward: [0.98686237]
cosine similarity 1.0
euclidian norm  0.0

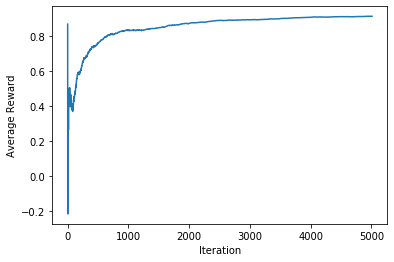

Softmax agent, beta= 0.1
maximum possible reward: 0.9851042878107023
average reward: [0.91348264]
cosine similarity 0.9992727823574249
euclidian norm  0.008915931500017809

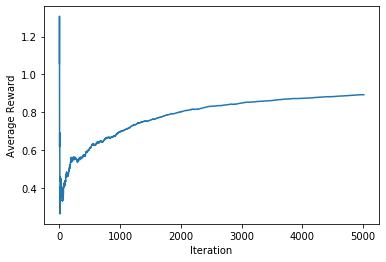

UCB1 agent
maximum possible reward: 0.9851042878107023
average reward: [0.89258379]
cosine similarity 0.0
euclidian norm  0.1414213562373095


Experimental stuff:

Below are a few agents I wrote for fun.


class softmax_with_exponentiation(agent):

    def __init__(self, arms, play_once=1, beta=1, exp=1):
        super().__init__(arms, play_once)
        self.beta = beta
        self.exp = exp

    def policy(self):
        temp = np.exp(self.expectations/self.beta)
        ans = temp / np.sum(temp, axis=0)
        ans = ans**self.exp
        ans /= np.sum(ans, axis=0)
        return ans


class softmax_with_reccurence(agent):

    def __init__(self, arms, play_once=1, beta=1):
        super().__init__(arms, play_once)
        self.old_policy = np.ones_like(self.expectations)/self.l
        self.beta = beta

    def policy(self):
        temp = np.exp(self.expectations/self.beta)
        new_policy = temp / np.sum(temp, axis=0)

        result = np.multiply(new_policy, self.old_policy)
        result /= np.sum(result, axis=0)
        self.old_policy = result

        return result


class greedy_with_reccurence(agent):
    # alpha = number < 1; will sum over a number of observations and will keep
    # osiclating.
    # alpha = N will allow the algo to converge to an arm, greedy doesn't
    # really need this, kind of always give one answer.

    def __init__(self, arms, play_once=1, alpha=1):
        super().__init__(arms, play_once)
        self.old_policy = np.ones_like(self.expectations)
        self.alpha = alpha

    def policy(self):
        new_policy = np.zeros_like(self.expectations)
        new_policy[np.argmax(self.expectations)] = 1

        new_policy = (1-self.alpha)*new_policy + self.alpha*self.old_policy

        new_policy /= np.sum(new_policy, axis=0)
        self.old_policy = new_policy

        return new_policy

# class magic(agent):
#    def __init__(self, arms, play_once=1, exp=1):
#        super().__init__(arms, play_once)
#        self.old_policy = np.ones_like(self.expectations)/self.l
#        self.exp = exp
#
#    def policy(self):
#        new_policy = f(old_policy, g(expectations))
